Municipal & Highway LED Street Lighting

Engineered for expressway corridors, urban collector avenues, and municipal infrastructure. Featuring precision ADC12 die-cast aerodynamic thermal architecture, Batwing Type II-M optics, 150-180 lm/W high efficacy, tool-less buckle latch, and optional Zhaga / NEMA 7-pin smart IoT sockets.

150-180 lm/W
System Luminous Efficacy
IP66 / IK09
Ingress & Mechanical Impact
10kV / 20kV
Surge Protection Device
5 - 7 Years
Full Project Warranty
Explore Models (Tabs) ↓ Request Dialux Simulation (IES) →
Engineering & Optical Guidance

Application Scenarios & Road Lighting Standards

Compliant with European standard EN 13201 (M1 to M5 classes) and IESNA RP-8. Our optical engineers calculate spacing, pole height, and luminance uniformity before production.

Highways & Expressways Class M1 / M2

Expressways & Highways

High-speed multi-lane transit corridors requiring high luminance (Lav ≥ 1.5 - 2.0 cd/m²) and zero driver visual fatigue with longitudinal uniformity Uo ≥ 0.40.

Mounting Height 10 - 14 Metres
Pole Spacing 35 - 45 Metres
Recommended Power 180W / 240W
Optics Distribution Type II-M Batwing
Municipal Arterial Roads Class M3 / M4

Urban Arterial Avenues

Dual-carriageway city boulevards with cross junctions, bike paths, and commercial sidewalks requiring balanced road luminance and low glare index (G2/G3).

Mounting Height 8 - 10 Metres
Pole Spacing 30 - 35 Metres
Recommended Power 120W / 150W
Optics Distribution Type II-S / Type III
Industrial Parks Industrial Class

Logistics & Port Roads

Heavy-vehicle industrial parks and logistics hubs where corrosion resistance, high IP66 dust-tight sealing, and 10kV surge protection against grid spikes are vital.

Mounting Height 8 - 12 Metres
Pole Spacing 28 - 35 Metres
Recommended Power 100W / 150W
Optics Distribution Type III-M Wide
Residential Streets Class P1 / P2

Residential Boulevards

Neighborhood roads requiring warm, glare-free 3000K lighting with zero upward light pollution (Dark-Sky compliance ULR < 1%) to avoid disturbing residences.

Mounting Height 6 - 8 Metres
Pole Spacing 25 - 30 Metres
Recommended Power 60W / 80W
Optics Distribution Type I / Type II-S
Global Tender Readiness

Certified to International Roadway Standards

Every batch undergoes automated photometric goniophotometer testing, 48-hour continuous thermal aging, and IP66 water immersion testing in Guzhen.

Tool-less Latch Design
Buckle clip mechanism allows tool-free housing opening and automatic power disconnect for 30-second maintenance.
Universal Spigot Mount
Adjustable Ø60mm (or Ø76mm) adapter supports both side-entry horizontal and post-top vertical mounting (-15° to +15°).
Smart Zhaga / NEMA Socket
Pre-wired 7-pin NEMA or Zhaga Book 18 base allows instant field plug-in of IoT photocells, LoRaWAN, or NB-IoT controllers.
Product Matrix

Street Lighting Catalog & Specifications

Select series below to compare wattages, efficacy, driver brands, and photometric profiles. Click any model to view its dedicated 14-parameter page.

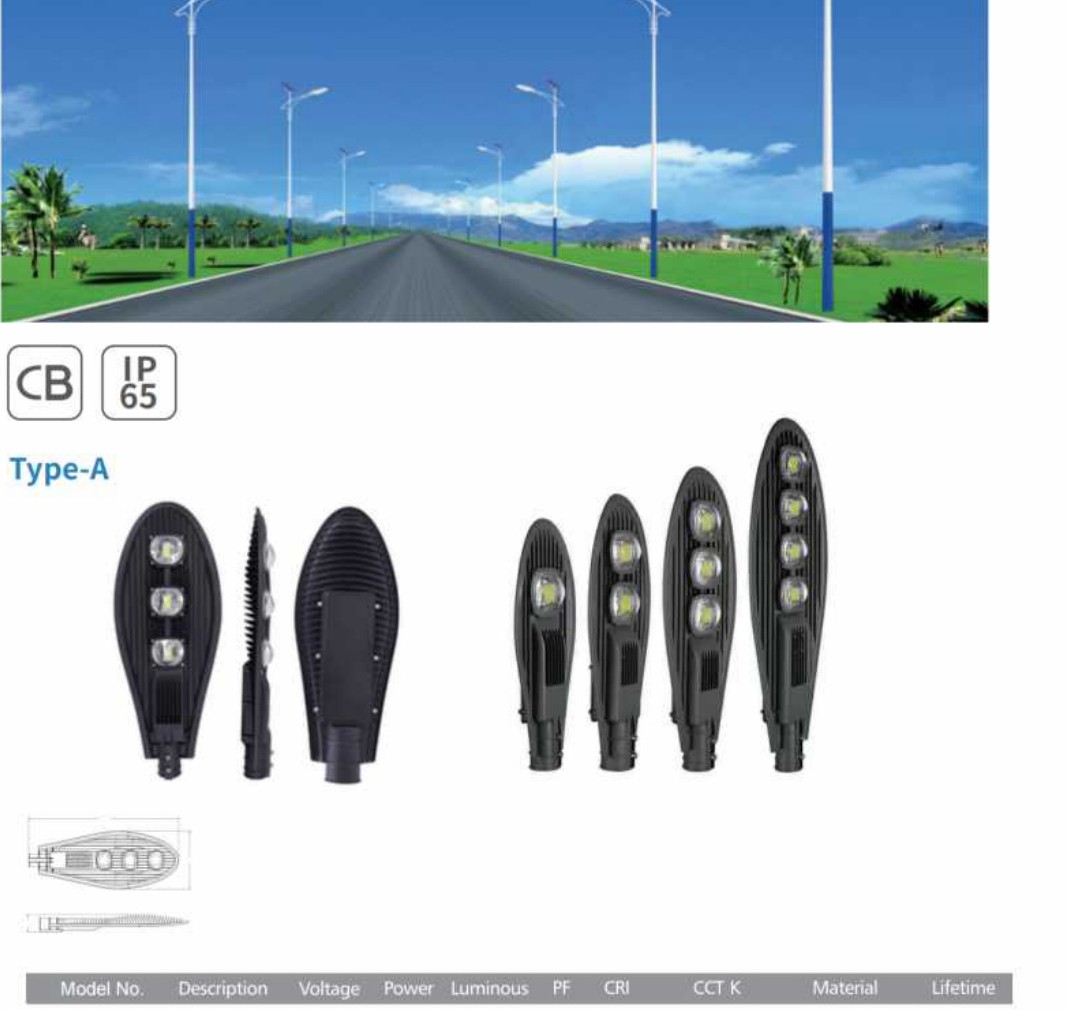

150W (60-240W Options) In Production Series-A Die-Cast LED Street Light 150W
Model: LS-ST-A150 · Series-A

Series-A Die-Cast LED Street Light 150W

Heavy-duty ADC12 die-cast housing with tool-less buckle clip. Standard tender workhorse for municipal arterial avenues and highway interchanges.

Luminous Flux 22,500 lm (150 lm/W)
Beam Optics Batwing Type II-M
Protection IP66 / IK09 / 10kV SPD
Driver & Chips Philips / Lumileds 5050
MOQ: 50 PCS
Lead Time: 15-20 Days
FOB: USD 38 - 62
View Full Specs & IES → Quick RFQ
80W (60-100W Options) Ready for Mold Series-A LED Street Light 80W
Model: LS-ST-A080 · Series-A Medium

Series-A Compact LED Street Light 80W

Compact chassis optimized for 6-8m pole municipal collector roads and industrial estates. Features smooth self-cleaning convex curvature.

Luminous Flux 12,000 lm (150 lm/W)
Beam Optics Batwing Type II-S
Protection IP66 / IK08 / 10kV SPD
Driver & Chips MeanWell / Sanan 3030
MOQ: 50 PCS
Lead Time: 12-16 Days
FOB: USD 26 - 39
View Full Specs & IES → Quick RFQ
240W (High-Power Highway) High Efficacy Series-Pro LED Street Light 240W
Model: LS-ST-PRO240 · Series-Pro

Series-Pro Aerodynamic Highway Light 240W

Ultra-low drag windage coefficient (EPA < 0.05m²) for coastal typhoons. Delivers up to 40,800 lm with 170 lm/W ultra-high binning LEDs.

Luminous Flux 40,800 lm (170 lm/W)
Beam Optics Type III-M Asymmetric
Protection IP66 / IK10 / 20kV SPD
Driver & Chips Inventronics / Cree 5050
MOQ: 30 PCS
Lead Time: 18-22 Days
FOB: USD 68 - 95
View Full Specs & IES → Quick RFQ
120W (D4i / Zhaga Socket) Smart City Smart IoT Zhaga Ready Street Light
Model: LS-ST-ZH120 · Smart City IoT

Smart IoT Zhaga Book 18 Street Light 120W

Equipped with DALI-2 D4i certified isolated driver and top-mounted Zhaga Book 18 base. Plug-and-play for central city CMS dimming and energy monitoring.

Luminous Flux 19,200 lm (160 lm/W)
Dimming Protocol DALI-2 / 0-10V / D4i
Socket Type Zhaga Book 18 / NEMA 7
Driver & Chips Philips Xitanium D4i
MOQ: 50 PCS
Lead Time: 15-20 Days
FOB: USD 46 - 68
View Full Specs & IES → Quick RFQ
Engineering Versatility

OEM Customization & Tender Adaptability

Direct factory modifications in Guzhen to match local public works ministry bidding specifications.

⚡

Driver & Chip Brands

Specify Philips Xitanium, Inventronics, MeanWell, Done, or Sosen drivers paired with Lumileds, Cree, or Osram high-efficacy LEDs.

🔍

Dialux 3D Simulations

Provide your roadway cross-section (lane width, pole distance, median barrier), and our lab generates verified IES Dialux calculation reports.

🎨

Powder Coat RAL Finishes

AkzoNobel marine polyester powder coating available in Anthracite Grey (RAL 7016), Silver (RAL 9006), or custom municipal colors with 1000h salt spray.

📦

Government Marking & Packing

Laser-engraved ministry logos, high-contrast QR labels for asset tracing, and export-grade honeycomb reinforced master cartons.

Municipal Road Tenders & Projects

Request Street Lighting Quote & Dialux Report

Send your road width, pole height, and lumen targets. Our engineering team in Guzhen will configure optical files and deliver EXW/FOB pricing within 24 hours.

✓ Dialux .evo 3D Lighting Study Included
✓ IES Photometric Data Packages (Type II / III)
✓ CE / CB / RoHS / ENEC Test Certificates Attached
✓ Mixed Container Loading from Zhongshan Port
